How To Use Yanhua Porsche BCM Key Tester

New coming!!!Want to know whether the Porche key is working? Is remote working? The Yanhua Porche BCM key tester will tell you

Here we are:

Youtube video demo:

Integrated interface board makes installation simple and efficient

It can detect whether the current key remote is working
Pressing the key button when the green light lighting, it indicates that the current key remote is working

Placing the key on the induction coil

Porsche BCM tester can detect whether the current key can start the car
Pressing: TEST

When the green light lighting, it indicates that the current key can start the car

YANHUA BCM tester for Porsche source from:

http://www.obdexpress.co.uk/wholesale/bcm-tester-for-porsche.html

How to use Yanhua Universal adapter to read 8feet chip data without soldering?

New!!! YanhuaUniversal Programming Adapter no soldering is required. It features in:

1. no soldering is required, when using to read the data of 8-feet chip, it works independently and safely.

2. This clip adapter is compatible with any of Auto Digital Master III, Digimaster 3, ckm100.

3. The pin comes with smart diagnostic function, the data reading safely and reliably.

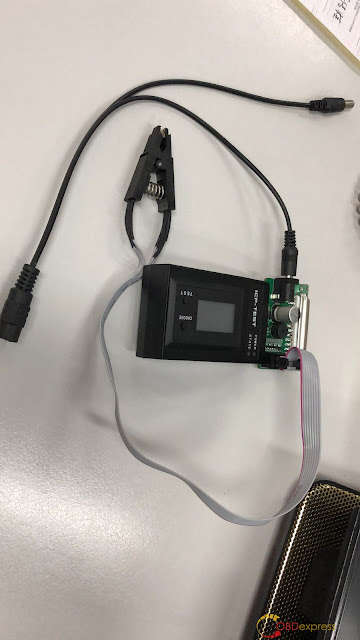

This is Universal Clip Adapter:

How to use this Universal Clip Adapter?

1. Follow the above image to connect D3 (or Auto Digital Master) to the Universal Clip Adapter, open the D3 software.

2. Please use the 8feet Puncture Socket or the Universal Adapter to clip the chip well and note the chip pins (the red wire stands for the pin-1).

For your information: this adapter can't be used to test the chip alone, the chip must be inserted into the circuit, the Universal Adapter detect the chip type through the circuit.

3. On the ICP tester, choose the corresponding chip type, click on "Test" to test if the pin is correct or not.

4. On the Universal Adapter display, you will see the diagnostic successful message. On the D3 or Auto Digital Master menu, select the corresponding chip type to read the data, try to reading for more than 2 times, compare if the data is the same, if yes means the data reading succeed.

Source:

http://www.obdexpress.co.uk/wholesale/yanhua-icp-tester.html

Yanhua Mini ACDP For BMW DME ISN Car List

Enter PC- ACDP software (Using computer, you can also run with one mobile phone).
Click on "BMW", then "DME ISN".

1. OBD /CAN Mode Read /Write ISN:

Read /Write N55 DME ISN (Supports F Chassis)
Read /Write N20 DME ISN (Supports F Chassis)
Read /Write N13 DME ISN (Supports F Chassis)
Read /Write S63TU DME ISN (Supports F Chassis)
Read /Write N63TU DME ISN (Supports F Chassis)
Read MSV80 /MSV801 DME ISN
Read MSD80 /MSD802 DME ISN
Read MSD81 /MSD812 DME ISN
Read MSD851 DME ISN (Currently supports E chassis)
Read MEV1722 DME ISN (Supports E chassis)
Read N62_TUE2 DME ISN (Supports E chassis)
Read MEV9N46 DME ISN (Supports E chassis)
Read MEV9N46L DME ISN (Supports E chassis)
Read MSV70 DME ISN (Supports E chassis)
Read MSS60 DME ISN (Supports E chassis)

2. Open DME shell to read /write ISN:

1) E series
DDE70_EDC17C06
DDE701一EDC17C50
DDE71_EDC17CP02
DDE721一EDC17C41
DDE73_EDC17CP09
DDE731一EDC17CP45
MEVD17(N55)
MEVD1724(N20)
MEVD1726(N55)
MEVD1729(N20)
MSV80
MSD80
MSD81
MSD85


2) F series
DDE701A
DDE701P
DDE721B
DDE721P
DDE73A
DDE731A
DDE741A
DDE751A
MEVD172(N55)
MEVD1726(N55)
MEVD1724(N20)
MEVD1725(N13)
MEVD172G(N55)
MEVD172S(N55)
MEVD172P(N20)
MEVD1728(S63)
MEVD1729(N20)
MSD85
MSD85HY
MSD87
MSV90

3) R series
MEV1722
MED172
DDE701_EDC17C50
MEVD1727

4) M series
BMSX

3. Read B38 ISN by opening DME shell.

Reading ISN
Read EEPROM
Write EEPROM
Open HEX Editor


4. OBD Read B48 DME ISN (Support F chassis).

OBD detect
Backup coding
Read ISN
Restore coding

Yanhua Mini ACDP has a frequent update, so more and more will be added without any doubt.

Enjoy.
